Memories of Nchanga's High-Grade Leach Plant

During my 4 years at Nchanga in the early 1970s my first two years were spent on the concentrator, before being transferred to the commisioning team for Stage I of what would eventually be the giant tailings leach-solvent extraction-electrowinning plant, the brainchild of the legendary Jack Holmes (MEI Blog 5th September 2018). Stage I was an interim plant designed to treat stockpiled low grade oxide copper concentrates by leaching and cementation in Kennecott Cones.
Stage I Tailings Leach Plant 1972. Kennecott Cones and Leach Pachucas
The cementation plant did not operate for very long as it was soon absorbed by Stage II and I did not see the final enormous tailings leach plant, which began operation in 1974, until my visit to Nchanga in 2012.

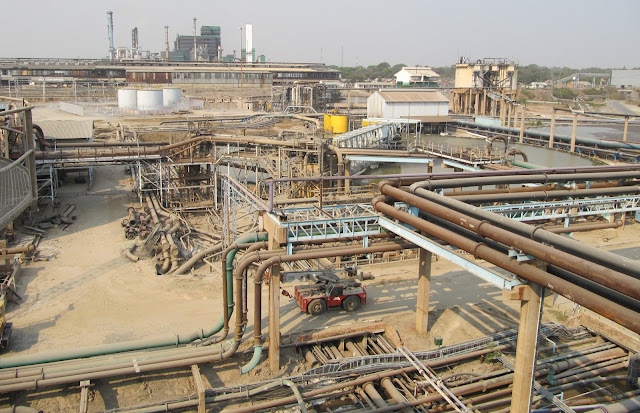

A section of the Tailings Leach Plant in 2012 with the smelter in the background
Copper is characterised by having a whole suite of economic ore minerals, and many are present in the Nchanga ore body. Underground ore contains mainly suphide minerals, chalcocite, chalcopyrite, covellite, bornite, while the shallower open-pit ore contains oxidised minerals, mainly the bright green malachite, blue azurite, as well as cuprite and chrysocolla. All these minerals responded to processing in various ways.
When I left Nchanga in 1973 these minerals were concentrated by flotation in two stages, first a relatively straightforward sulphide flotation circuit, and then treatment of the sulphide tailings by sulphidisation using sodium hydrosulphide, before floating the oxidised minerals. Not too successfully, however, as the final tailings contained substantial amounts of refractory minerals, notably chrysocolla and cuprite, and to a lesser extent malachite and azurite. The tailings leach plant was initially conceived to treat these tailings, but so successful was piloting that the 'oxide' flotation circuit was dispensed with and the giant plant treated the tailings from sulphide flotation as well as tailings impounded in tailings dams.
So when commisioning of Stage I had been completed I did not realise that my transfer, for my few remaining months in Zambia, would be to a plant which would also soon become obsolete, the high-grade leach plant. This section tank-leached the oxide flotation concentrates in dilute sulphuric acid, the resultant copper sulphate solution being transferred to the tank house to produce electrowon copper.
With fellow metallurgist Peter Glass, 1973
Electrowinning tankhouse
Copper cathode stockpile with Sandy Lambert
I found things had changed enormously when I returned to Nchanga 8 years ago. In the early 70s sulphide concentrates were shipped by rail to the smelter at Kitwe around 30 miles away. Now a giant flash smelter treats these concentrates at the rate of 12,000 tonnes of anode copper per month, and sits on the site of the old high-grade leach plant.
Although my few months on the leach plant provided a catalyst for our move from Zambia, I have fond memories of those few months, particularly of the people that I met, many of whom I still keep in touch with.
Leach plant personnel 1973, BW, Eric Plumridge, Phil Cudby, Ian Noble, Corrie Koen, Peter Glass and Paul Smithson
Times change but memories linger on.
